Code Examples

The client-sample.tar.gz file contains a multi-module Maven project that is made up of a number of examples.

Setup

1. When running samples the following JVM args must be specified:

--add-opens java.base/jdk.internal.misc=ALL-UNNAMED

2. The samples contain a ks-common project that has a TutorialConstants class - update the KEY_ACCESS_URL constant to point to your development environment.

Examples

Each example can be found within its own maven module labelled by the name.

Hello World

This example shows a very simple pair of applications that subscribe to and publish a Java Map.

Class	Description
trading.keysquare.tutorial.helloworld.HelloWorldSubscriber	A basic application that subscribes to a Java Map.
trading.keysquare.tutorial.helloworld.HelloWorldPublisher	A basic application that publishes a Java Map.

When running the two examples, the published data can be seen using the Viewer.

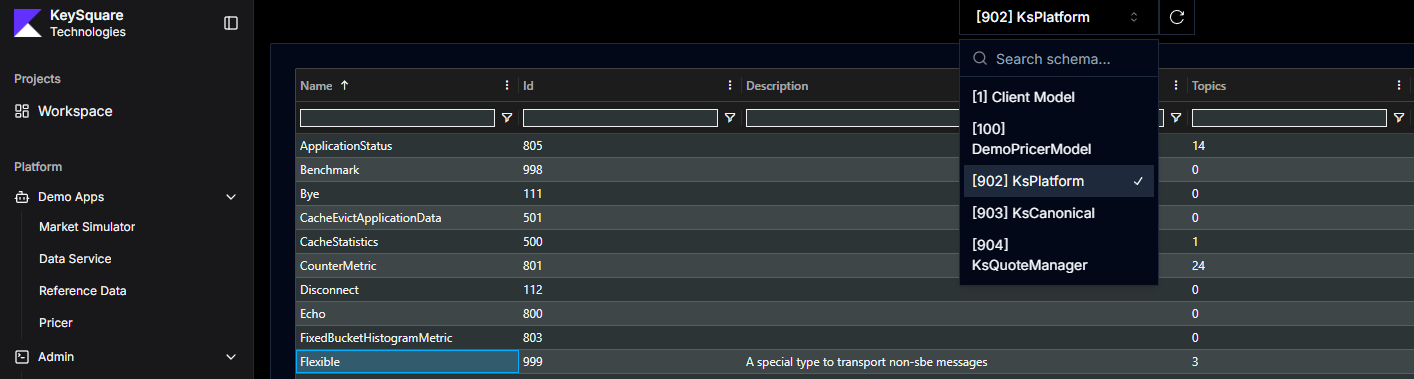

Using the Viewer, select the KsPlatform model:

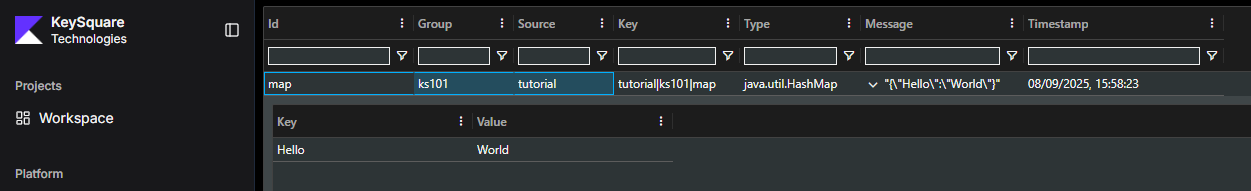

Double click on the Flexible row, which will show the data being published:

Serialization

This example shows how the API can be used to publish / subscribe to the different forms of serialization:

• Java Map
• Java Pojo
• Data Transfer Object (DTO) which adheres to SBE schema
• Simple Binary Encoding (SBE)

Class	Description
trading.keysquare.tutorial.serialization.SerializationSubscriber	Subscribes to the variety of serialization formats.
trading.keysquare.tutorial.serialization.SerializationPublisher	Publishes the variety of serialization formats.

Demo Pricer

This example shows a more complex example where a custom model is being created within the project and used by two processes.

Class	Description
trading.keysquare.tutorial.demopricer.DemoPricePublisher	Creates and publishes a random bid/offer for a single price.
trading.keysquare.tutorial.demopricer.DemoPriceEngine	Consumes the price published by the DemoPricePublisher and adds a spread to that price and re-publishes it out as a new source.

When running the two pricer examples, the published data can be seen using the Viewer.

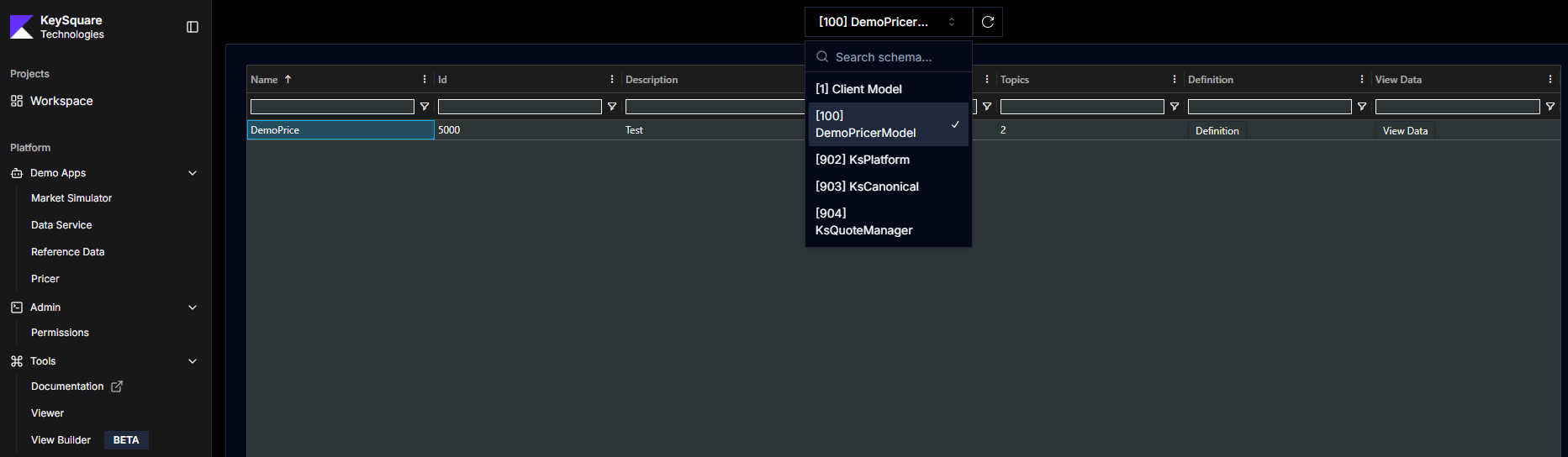

Using the Viewer, select the DemoPricerModel:

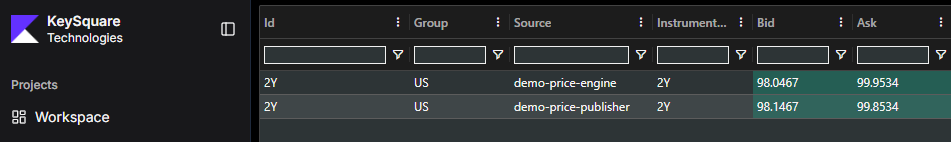

Double click on the DemoPrice row, which will show the data being published:

Coming soon...

info

The following topics will be covered shortly...

KeySessionListener

1. Life cycle, start, stop, connected, disconnected
2. Unrouted messages

Monitoring

1. Counter
2. Histogram

Misc

1. Session.getApplicationId, Session.getApplicationName
2. Optional: Key application
3. Optional: Config
4. SBE backwards compatibility rules

Message Editing

1. Editable flag
2. Requesting edits
3. Receiving edits
4. Best practices - overlay over existing message

Topic Sets

1. How to create
2. How to subscribe

Message Store

1. Storing messages
2. Message Store modes
3. Retrieving messages
4. Deleting messages

Resiliency

1. Auto reconnect

The Real World

1. Real World Example
