Bond Calculator

Overview

The Bond Calculator is the primary UI page for the Analytics Engine module. It lets you:

• Search for any instrument held in Static Data Server
• Calculate price or yield interactively for a chosen redemption date
• View yields to all call dates for callable bonds
• Inspect the full cashflow schedule
• Verify the internal QuantLib model state used by the analytics engine for troubleshooting

It is a useful tool both for day-to-day analytics and for verifying that Analytics Engine is producing correct results.

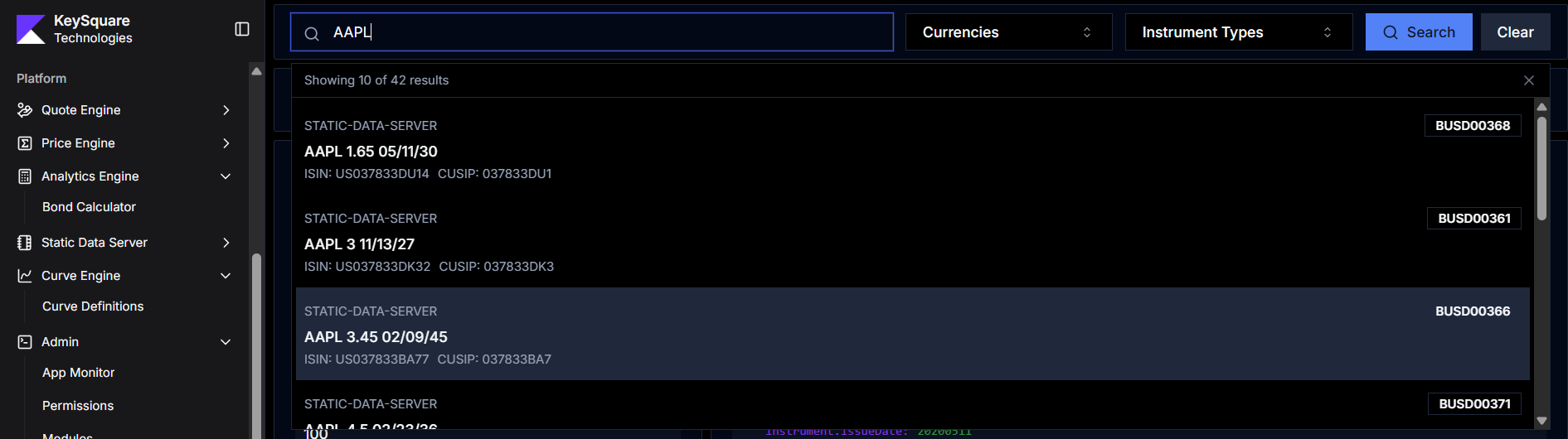

Searching for an Instrument

Use the search bar at the top of the page to find an instrument. You can search by free text (description, ticker) or by identifier (ISIN, CUSIP). Optionally filter by currency or instrument type using the dropdowns.

Results are fetched from Static Data Server. Click any result to load it into the calculator.

Once an instrument is selected, the page header shows its trade date, settlement date, description, and ISIN. The calculator panel and results panel will populate automatically.

Calculator Panel

The left-hand panel contains the calculator inputs and controls.

Calculator Inputs

Field	Description
Clean Price	The clean price input. Editing this field and clicking Calculate will compute yield from price.
Yield	The yield input. Editing this field and clicking Calculate will compute price from yield.
Redemption Date	The workout date to use for the calculation. Defaults to the yield-to-worst date computed by AE from the current price. For callable bonds this is a dropdown populated with all available call dates and the final maturity.
Redemption Price	The price at which the bond is expected to be redeemed on the selected redemption date.
Convention	Display-only. Shows the day count convention and other pricing conventions derived from the instrument.
PV01	Display-only. The PV01 (price value of a basis point) computed from the current clean price and workout date.

Calculate Button

Click Calculate to send a ValuationRequest to Analytics Engine. If you have edited the Clean Price, yield is recalculated from price. If you have edited the Yield, price is recalculated from yield.

The refresh icon (↺) next to the Calculator heading resets all fields to the values last published by Price Engine for this instrument.

Payment Details

Below the calculator inputs, the Payment Details table shows the coupon schedule — start date, coupon rate, and payment frequency. This is a static display derived from the instrument definition.

Results Panel

The right-hand panel shows results in four tabs: Details, Yields, Cash Flows, and Diagnostics.

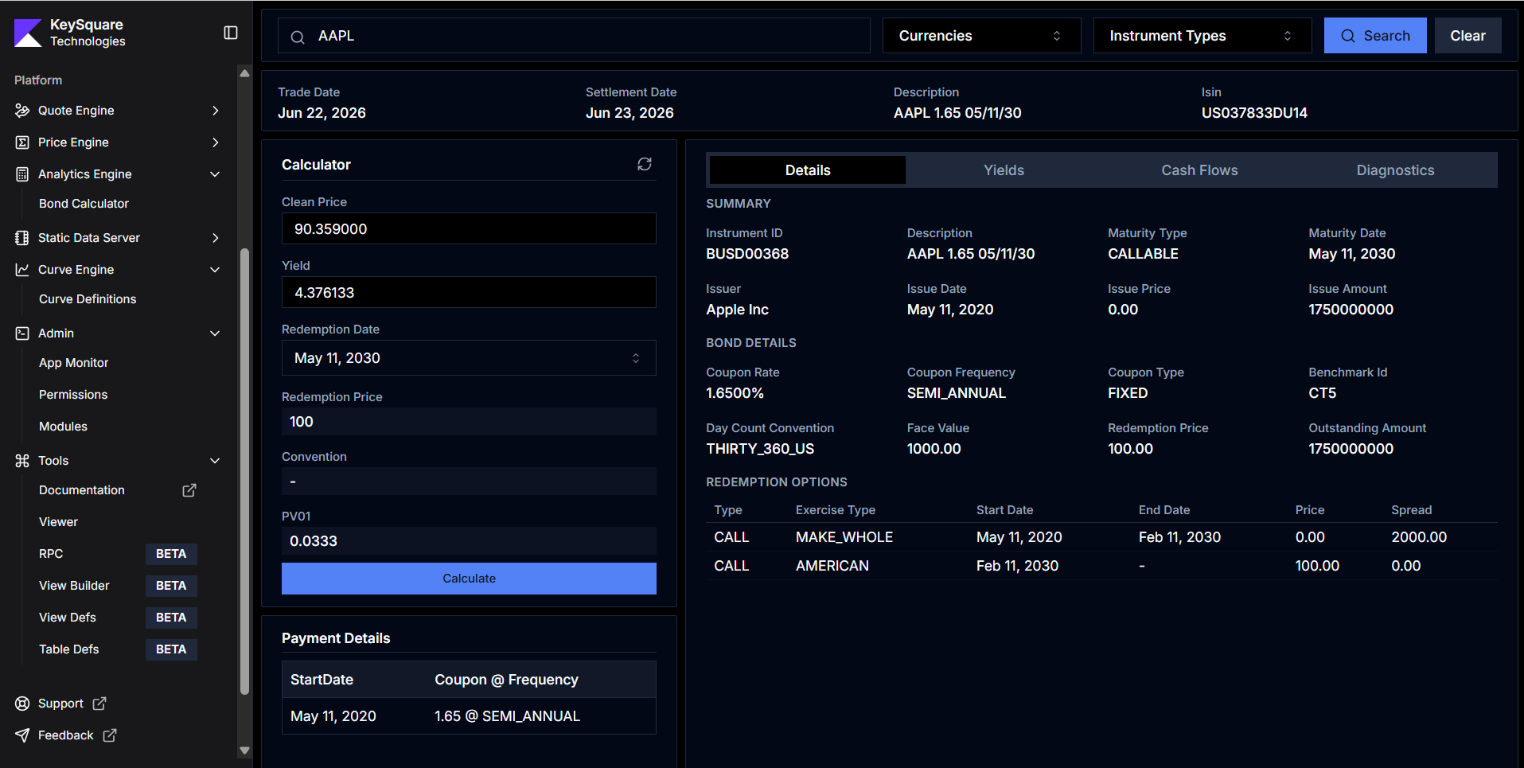

Details Tab

Shows a structured summary of the instrument as held in Static Data Server.

Section	Fields
Summary	Instrument ID, description, maturity type, maturity date, issuer, issue date, issue price, issue amount
Bond Details	Coupon rate, frequency, coupon type, benchmark ID, day count convention, face value, redemption price, outstanding amount
Redemption Options	For callable/puttable bonds: type (CALL/PUT), exercise type (AMERICAN/MAKE_WHOLE), start/end dates, price, spread

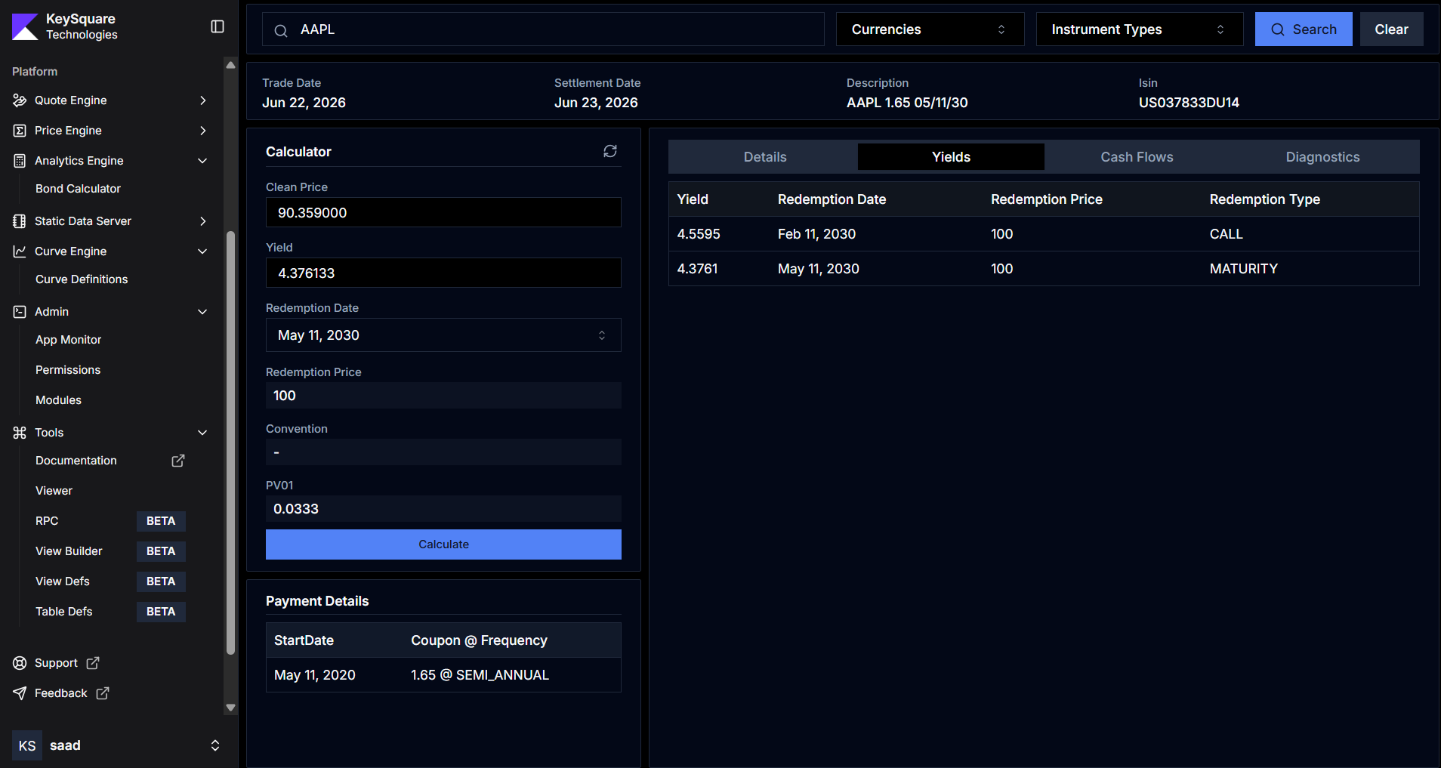

Yields Tab

Shows the yield computed for every possible redemption date — all call dates plus the final maturity date — based on the current clean price. This is the output of the ComputeYieldsToCallDates RPC.

Column	Description
Yield	Yield to this redemption date from the current clean price
Redemption Date	The call or maturity date
Redemption Price	The price at which the bond would be redeemed
Redemption Type	CALL for call options, MATURITY for the final maturity

The row highlighted corresponds to the currently selected Redemption Date in the calculator panel. The yield-to-worst row (lowest yield across all call dates and maturity) is the one AE and Price Engine use by default.

tip

If a yield is unexpectedly high or low for a specific call date, check whether the redemption price for that option is set correctly in the instrument definition. See Instruments for how to edit instrument fields.

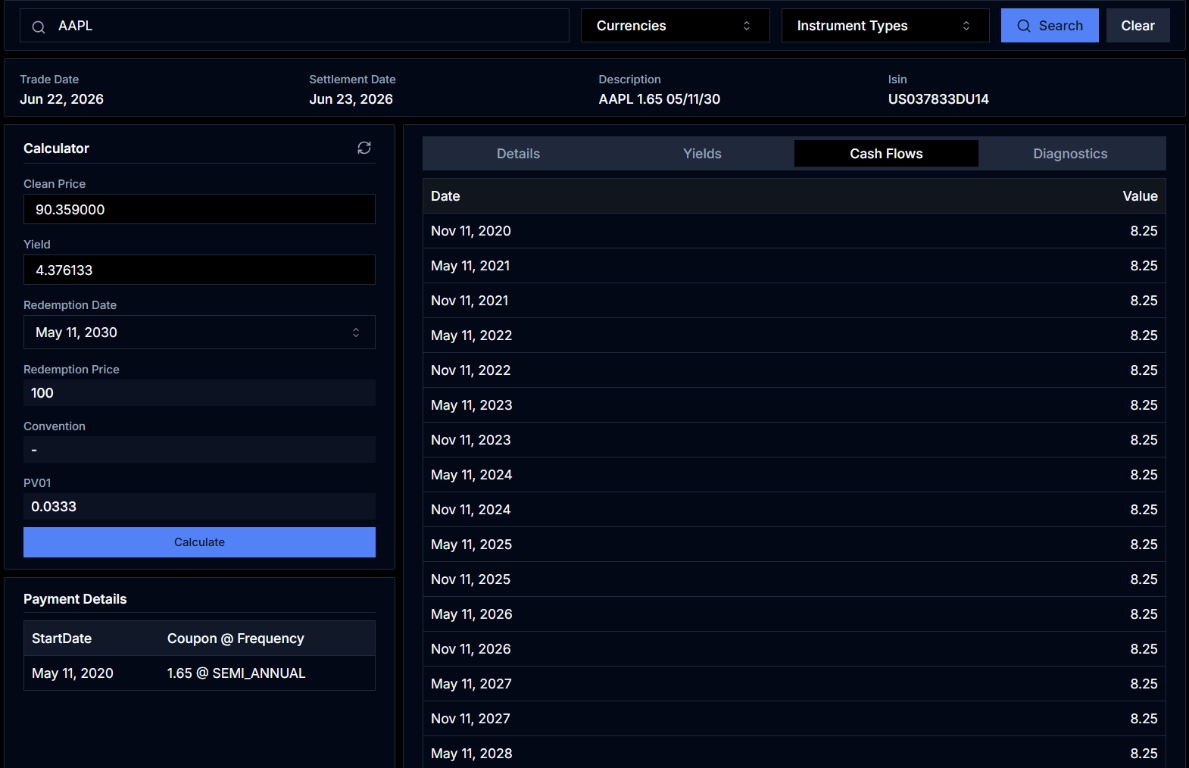

Cash Flows Tab

Shows the projected cashflow schedule produced by the ComputeCashflows RPC. Each row is a coupon payment or the final principal repayment.

Column	Description
Date	Payment date (in MMM DD, YYYY format)
Value	Cashflow amount per 100 face value

The list is scrollable for bonds with long tenors. All coupons are shown regardless of whether they have already paid — past cashflows are included for reference.

note

Cashflows are generated from the valuation date forward using the instrument's coupon schedule. For floating rate bonds, future coupon amounts are projections based on the current index curve.

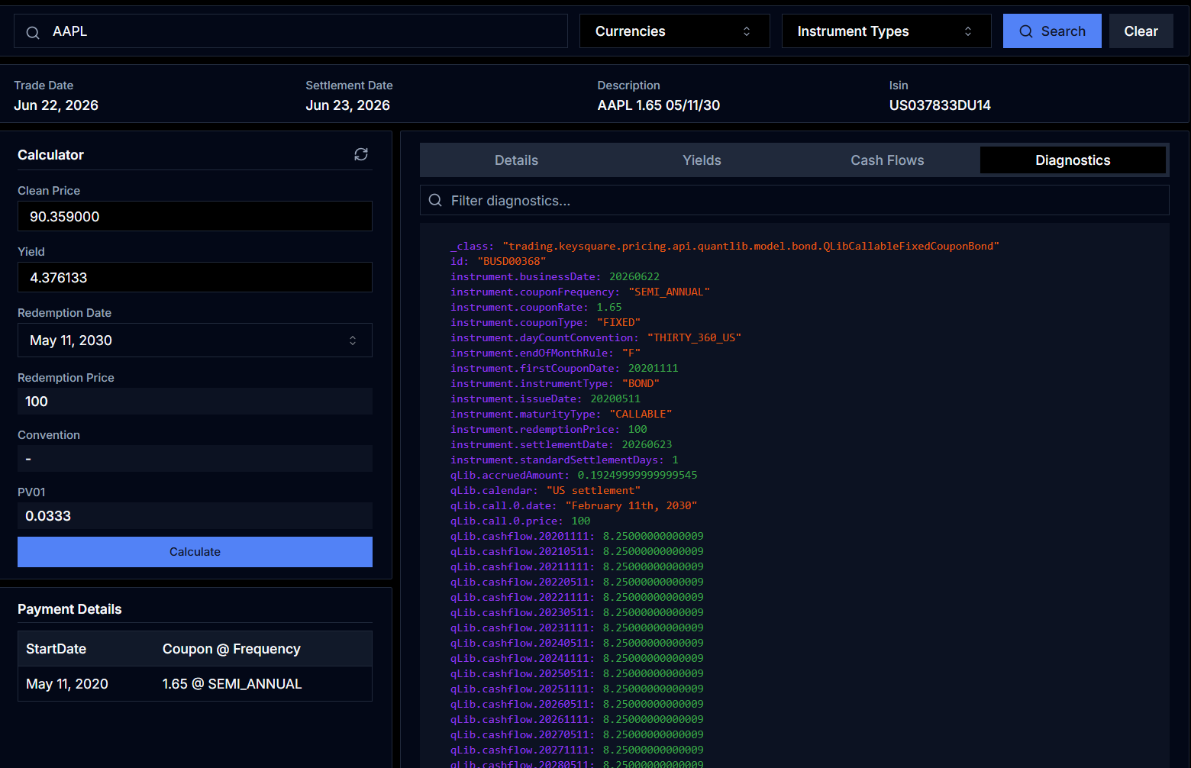

Diagnostics Tab

Shows the raw internal state of the QuantLib bond model. This is the output of the GetBondDiagnostics RPC, returned as a flat key-value map.

Use the Filter diagnostics... search box to narrow the display by key name.

Key fields to look for when troubleshooting:

Key Prefix	Description
_class	The QuantLib model class used (e.g. QLibCallableFixedCouponBond)
id	Platform instrument ID resolved by AE
instrument.*	Instrument fields AE read from SDS (coupon rate, type, dates, convention, settlement days, etc.)
qLib.*	Internal QuantLib values (accrued amount, calendar, cashflows, call schedule)
qLib.cashflow.*	All cashflow amounts keyed by date
qLib.call.*	Call option schedule keyed by index

Common Troubleshooting Checks

Yield looks wrong:

1. Check instrument.couponRate and instrument.couponFrequency match the term sheet
2. Check instrument.dayCountConvention — an incorrect convention (e.g. ACT_ACT vs THIRTY_360_US) will produce materially different yields
3. Check instrument.settlementDate and instrument.standardSettlementDays

PV01 is zero or missing:

1. Verify AE is returning ok=true in the ValuationRequest response (visible in the Tools → RPC panel)
2. Check instrument.businessDate — if the valuation date doesn't match AE's current date the request will be rejected

Callable bond using wrong redemption date:

1. Check qLib.call.* entries to verify the call schedule was correctly parsed
2. Compare dates and prices against the Redemption Options shown in the Details tab
3. If options are missing, verify the redemptionOptionsEntry on the instrument in SDS

Using the RPC Tool for Direct Testing

You can call Analytics Engine RPCs directly without using the Bond Calculator. Navigate to Tools → RPC in Key UI, select analytics-engine as the application, and choose the RPC to invoke.

This is useful for:

• Testing a specific input that produces unexpected results in Price Engine
• Verifying AE behaviour after a configuration change or restart
• Checking that a specific instrument has loaded correctly before it starts pricing
